Description
The optional Software Bisque Direct-Drive Instrument Rotator is compatible with the Paramount Apollo and Paramount Taurus equatorial fork direct-drive mounts.

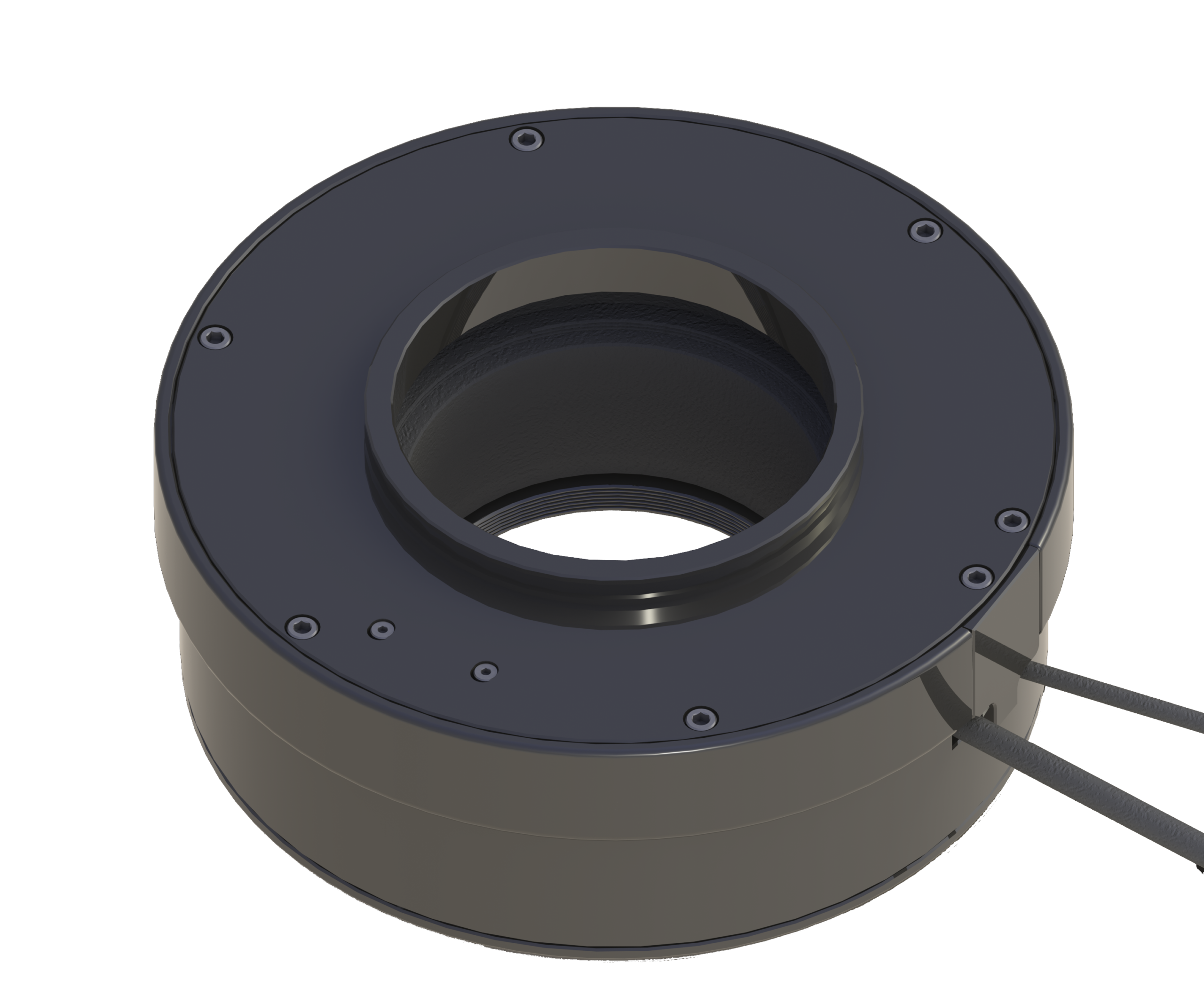

Paramount Direct-Drive Instrument Rotator
An instrument rotator is essential for eliminating field rotation on Paramount Apollo altazimuth mounts, and can make astrophotography tasks, such as field orientation on Paramount Taurus equatorial fork mounts simple. The same benefits extend to the Paramount Duo which can operate in altazimuth or equatorial mode.
$9,895.00
Available on backorder
Additional information
| Weight | 15 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
Software Bisque Direct-Drive Instrument Rotator Specifications
| Description | Specification |
|---|---|
| Clear aperture | 89 mm (3.5 in.) |
| Physical size | 200 mm (8 in.) OD, 70 mm (2.75 in.) thick |
| Weight | 4.5 kg (10.2 lbs.) |
| Torque | 9 Nm (7 ft-lbs.) |
| Telescope adapter | Optec-style 4300 dovetail |
| Camera adapter | 89 mm (3.5 in.) 24 TPI |
| Back focus | 70 mm (2.75 in.) |
| Resolution | 26-bit absolute encoder |
| Power | Three-axis industrial direct drive controller |
| Construction | Machined 6061 aluminum housing |
| Full travel | 540 degrees |
| Control system | Commanded by a three-axis industrial direct drive motor controller. Powered by TheSky software or custom software. |
